Neodymium magnets with low temperature coefficients are specially designed to maintain their magnetic performance over a wide range of temperatures. These magnets are ideal for applications where temperature fluctuations are common, as they exhibit minimal changes in magnetic properties (such as magnetic flux density or coercivity) with temperature variations. Here’s a detailed explanation of what low temperature coefficient neodymium magnets are and how they are achieved:
- What is a Temperature Coefficient?
The temperature coefficient of a magnet describes how its magnetic properties change with temperature. For neodymium magnets, the two most important temperature coefficients are:
- Temperature Coefficient of Remanence (Br): Measures how the magnetic flux density changes with temperature.
- Temperature Coefficient of Coercivity (Hcj): Measures how the resistance to demagnetization changes with temperature.
A low temperature coefficient means the magnet’s performance remains stable across a wide temperature range.
- Why Are Low Temperature Coefficients Important?
Neodymium magnets are sensitive to temperature changes. Standard neodymium magnets can lose magnetic strength or become demagnetized at high temperatures. Low temperature coefficient magnets are engineered to:
- Maintain stable magnetic performance in environments with temperature fluctuations.
- Resist demagnetization at elevated temperatures.
- Ensure reliable operation in demanding applications.
- How Are Low Temperature Coefficient Neodymium Magnets Made?
To achieve low temperature coefficients, manufacturers use advanced materials and techniques, including:
- Alloy Modifications
- Adding elements like dysprosium (Dy) or terbium (Tb) to the neodymium-iron-boron (NdFeB) alloy improves the magnet’s resistance to temperature changes.
- These elements increase the magnet’s intrinsic coercivity (Hcj), making it more stable at high temperatures.
- Special Grades
- High-Temperature Grades: Grades like N42H, N52H, or N35SH are designed for low temperature coefficients and high-temperature performance.
- Ultra-High-Temperature Grades: Grades like N30UH or N33EH are used in extreme temperature environments.
- Advanced Manufacturing Processes
- Grain Boundary Diffusion: A process that distributes dysprosium or terbium more efficiently, enhancing temperature stability without significantly increasing cost.
- Optimized Sintering: Ensures a uniform microstructure, improving the magnet’s overall stability.
- Benefits of Low Temperature Coefficient Neodymium Magnets
- Stable Performance: Maintains magnetic strength and coercivity across a wide temperature range.
- High-Temperature Resistance: Can operate reliably at elevated temperatures (up to 200°C or higher, depending on the grade).
- Longer Lifespan: Reduces the risk of demagnetization and material degradation over time.
- Wide Application Range: Suitable for industries where temperature fluctuations are common.
- Applications of Low Temperature Coefficient Neodymium Magnets
These magnets are ideal for applications requiring stable magnetic performance in varying temperatures, such as:

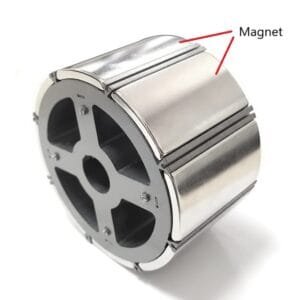

- Automotive: Electric vehicle motors, sensors, and actuators.
- Aerospace: Navigation systems, sensors, and actuators.
- Industrial: Motors, generators, and magnetic separators in high-temperature environments.
- Renewable Energy: Wind turbine generators and other energy systems.
- Medical: Devices requiring stable performance in varying conditions.
- Temperature Coefficient Values
The temperature coefficients of neodymium magnets are typically expressed as a percentage change per degree Celsius (%/°C). For example:
- Standard N42 Magnet:
- Temperature Coefficient of Br: -0.12%/°C
- Temperature Coefficient of Hcj: -0.6%/°C
- High-Temperature N42H Magnet:
- Temperature Coefficient of Br: -0.11%/°C
- Temperature Coefficient of Hcj: -0.5%/°C
Lower values indicate better temperature stability.
- Testing for Temperature Stability
To ensure low temperature coefficients, magnets are subjected to rigorous testing, including:
- Temperature Cycling: Tests performance under repeated temperature changes.
- High-Temperature Exposure: Evaluates magnetic properties at elevated temperatures.

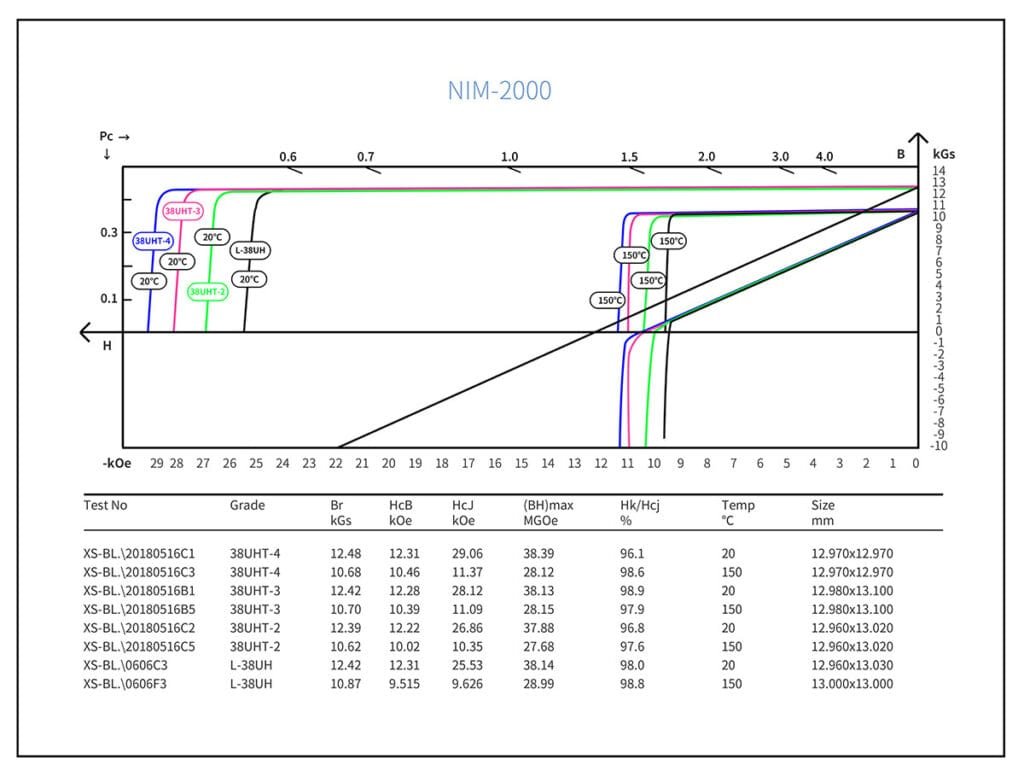

- Demagnetization Curves: Measures changes in coercivity and remanence with temperature.
- Why Choose us for Low Temperature Coefficient Neodymium Magnets?
we specialize in producing high-quality neodymium magnets with low temperature coefficients. Our magnets are designed to deliver stable performance in the most demanding environments. Here’s why you should choose us:
- Advanced Alloys: We use high-performance grades like N42H, N52H, and N35SH to ensure temperature stability.
- Custom Solutions: We tailor our magnets to meet your specific requirements, including size, shape, and performance.
- Quality Assurance: Our magnets undergo rigorous testing to ensure they meet international standards.
- Expert Support: Our team provides technical guidance to help you select the right magnet for your application.
- FAQs About Low Temperature Coefficient Neodymium Magnets
Q: What is the maximum operating temperature for low temperature coefficient magnets?
A: Depending on the grade, these magnets can operate at temperatures up to 150°C to 200°C or higher.
Q: Can low temperature coefficient magnets be used in cryogenic environments?
A: Yes, they can be designed to perform reliably at very low temperatures as well.
Q: Are low temperature coefficient magnets more expensive?
A: Yes, due to the addition of rare earth elements like dysprosium or terbium, these magnets may have a higher cost, but their performance justifies the investment.
- Example Products
Here are some examples of low temperature coefficient neodymium magnets offered by us:
- N42H Grade Magnets: High-temperature resistance with stable performance.
- N35SH Grade Magnets: Superior coercivity for extreme environments.
- Custom-Shaped Magnets: Tailored to your application with enhanced temperature stability.
