The magnetic pulling force (also known as magnetic holding force or magnetic attraction force) is a key characteristic of neodymium magnets. It refers to the force required to pull a magnet away from a flat steel surface or another magnet. Understanding pulling force is essential for selecting the right strong magnet for your application. Here’s a comprehensive guide to magnetic pulling force for neodymium magnets:
1. What is Magnetic Pulling Force?
Magnetic pulling force is the measure of a magnet’s strength in terms of how much force it can exert to attract and hold ferromagnetic materials (like iron or steel). It is typically measured in kilograms (kg), pounds (lb), or Newtons (N).
2. Factors Affecting Pulling Force
The pulling force of a neodymium magnet depends on several factors:
- Magnet Grade: Higher-grade magnets (e.g., N52) have stronger pulling forces than lower grades (e.g., N35).
- Magnet Size: Larger magnets generally have greater pulling forces.
- Magnet Shape: The surface area in contact with the material affects the pulling force.
- Surface Condition: Smooth, flat surfaces provide better contact and higher pulling forces.
- Air Gap: Any gap between the magnet and the material reduces the pulling force.
- Material Thickness: The thickness and type of the ferromagnetic material also influence the pulling force.
3. How is Pulling Force Calculated?
The pulling force of a neodymium magnet can be estimated using the following formula:
Pulling Force=𝐵2×𝐴/(2×𝜇0)Pulling Force=B2×A/(2×μ0)
Where:
- 𝐵B = Magnetic flux density (in Tesla)
- 𝐴A = Contact area (in square meters)
- 𝜇0μ0 = Permeability of free space (4𝜋×10−7 N/A24π×10−7N/A2)
However, in practice, manufacturers provide pulling force values based on standardized testing conditions.
4. Typical Pulling Force Values
Neodymium magnets are known for their exceptional pulling force compared to other types of magnets. Here are some examples:
- A small disc magnet (e.g., 10mm diameter x 5mm thick, N42 grade) can have a pulling force of 6-8 kg (13-18 lbs).
- A larger block magnet (e.g., 70mm x 70mm x 20mm, N52 grade) can have a pulling force of over 200 kg (440 lbs).
5. How to Measure Pulling Force

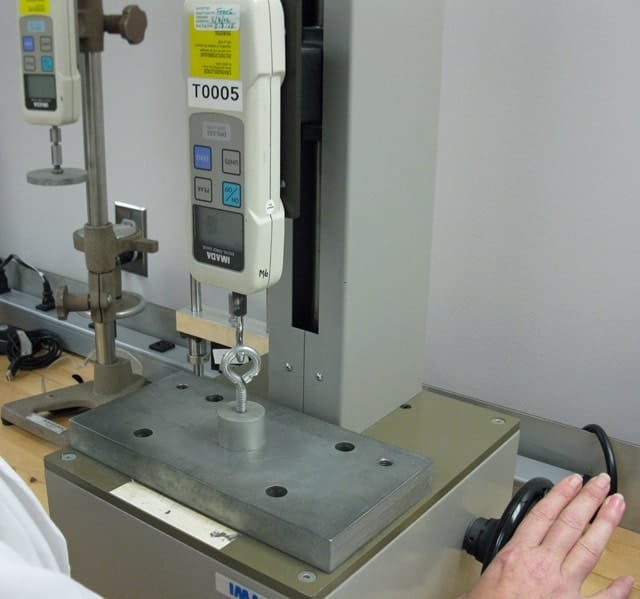

- Direct Measurement: Use a pull force tester, which measures the force required to separate the magnet from a steel plate.
- Manufacturer Data: Most reputable suppliers, like us, provide pulling force data for their magnets based on standardized tests.
6. Applications of Pulling Force
Understanding pulling force is crucial for applications such as:

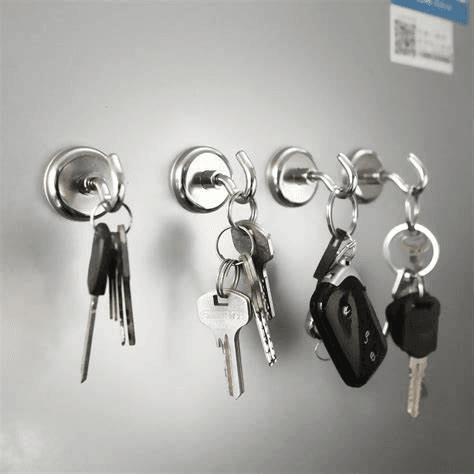

- Magnetic Holders: Used in industrial fixtures, tools, and displays.
- Magnetic Separators: For removing ferrous contaminants from materials.
- Lifting Systems: In cranes and hoists for handling heavy steel objects.
- Magnetic Couplings: In pumps and motors where torque transmission is required.
7. Safety Considerations
- Strong Forces: Neodymium magnets have extremely high pulling forces, which can cause injuries or damage if not handled carefully.
- Pinching Hazard: Keep fingers and body parts away from the magnet and the attracted object.
- Fragility: Neodymium magnets are brittle and can shatter if allowed to snap together.
8. How to Choose the Right Pulling Force
- Application Requirements: Determine the force needed for your specific application.
- Magnet Size and Grade: Select a magnet with the appropriate size and grade to achieve the desired pulling force.
- Consult Experts: Work with a reputable supplier like us to ensure you get the right magnet for your needs.
9. FAQs About Pulling Force
Q: Can I increase the pulling force of a magnet?
A: Yes, by using a higher-grade magnet, increasing the size, or ensuring maximum contact with the ferromagnetic material.
Q: Does temperature affect pulling force?
A: Yes, neodymium magnets lose strength at high temperatures. Choose a magnet with a suitable temperature rating for your application.
Q: How do I compare pulling forces between different magnets?
A: Compare the pulling force values provided by the manufacturer under standardized conditions.

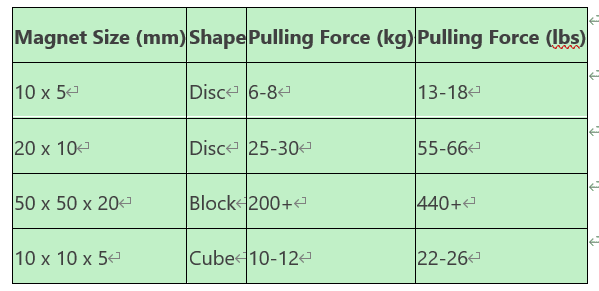

10. Example Pulling Force Chart
Here’s an example of pulling forces for common neodymium magnet sizes (N42 grade):
