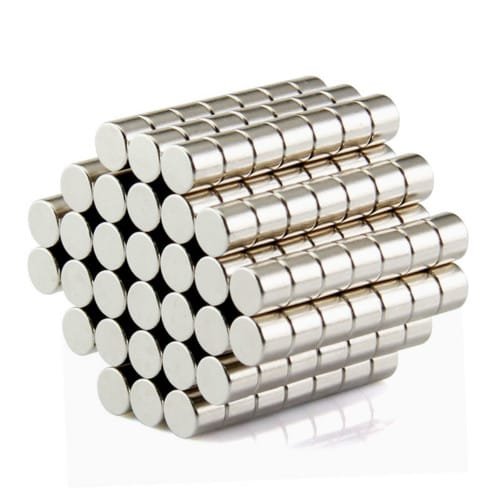

Neodymium magnets, also known as NdFeB magnets (neodymium-iron-boron), are the strongest type of permanent magnets commercially available. They work based on the principles of magnetism and the unique properties of their atomic structure. Here’s a detailed explanation of how they work:
- Magnetic Domains
- Atomic Structure: Neodymium magnets are made from an alloy of neodymium, iron, and boron (Nd₂Fe₁₄B). These elements form a crystalline structure that allows the material to generate a strong magnetic field.
- Magnetic Domains: Inside the magnet, there are tiny regions called magnetic domains, where the magnetic moments of atoms are aligned in the same direction. In an unmagnetized state, these domains point in random directions, canceling each other out.
- Alignment of Magnetic Domains
- Magnetization Process: During manufacturing, the neodymium alloy is exposed to a powerful external magnetic field. This causes the magnetic domains to align in the same direction.
- Permanent Magnetization: Once the external field is removed, the domains remain aligned, creating a strong, permanent magnetic field.
- Magnetic Field Generation
- Magnetic Poles: The aligned domains create a north pole and a south pole on the magnet. The magnetic field lines flow from the north pole to the south pole, both inside and outside the magnet.
- Strength of the Field: The strength of the magnetic field depends on the alignment of the domains and the composition of the alloy. Neodymium magnets have a very high magnetic energy product (BHmax), which makes them exceptionally strong.
- Why Neodymium Magnets Are So Strong
- High Magnetic Anisotropy: The crystalline structure of Nd₂Fe₁₄B has a high magnetic anisotropy, meaning it strongly resists changes to the alignment of its magnetic domains.
- High Saturation Magnetization: The iron in the alloy contributes to a high saturation magnetization, allowing the magnet to store a large amount of magnetic energy.
- Strong Atomic Bonds: The combination of neodymium, iron, and boron creates a stable and highly efficient magnetic material.
- How They Interact with Other Materials
- Attraction and Repulsion: Neodymium magnets attract ferromagnetic materials (e.g., iron, nickel, cobalt) and other magnets. Like poles repel, and opposite poles attract.
- Magnetic Force: The force exerted by a neodymium magnet depends on its size, grade, and the distance from the object it interacts with. Larger magnets and higher grades (e.g., N52) produce stronger forces.
- Applications of Neodymium Magnets
Neodymium magnets are used in a wide range of applications due to their strength and compact size:
- Electronics: Speakers, headphones, hard drives, and sensors.
- Motors and Generators: Electric vehicle motors, wind turbines, and industrial machinery.
- Medical Devices: MRI machines and surgical tools.
- Everyday Items: Magnetic closures, toys, and jewelry.
- Limitations
- Temperature Sensitivity: Neodymium magnets lose their magnetic properties at high temperatures (above their maximum operating temperature).
- Brittleness: They are brittle and can chip or break if mishandled.
- Corrosion: They are prone to corrosion unless coated with protective materials like nickel or epoxy.
Summary
Neodymium magnets work by aligning magnetic domains within their crystalline structure, creating a strong and stable magnetic field. Their exceptional strength comes from the unique properties of the neodymium-iron-boron alloy, including high magnetic anisotropy and saturation magnetization. These magnets are widely used in technology, industry, and everyday life, but they require careful handling and protection from high temperatures and corrosion.
