The magnetization direction of a neodymium magnet is a critical factor in its performance and application. It refers to the orientation of the magnetic field within the magnet, which determines how the magnet interacts with other magnetic materials or fields. Here’s a detailed explanation of magnetization direction in neodymium magnets:
- What is Magnetization Direction?
Magnetization direction is the axis along which the magnetic field is aligned within the magnet. It is determined during the manufacturing process when the magnet is exposed to a strong external magnetic field. This process aligns the magnetic domains within the material, creating a north and south pole.

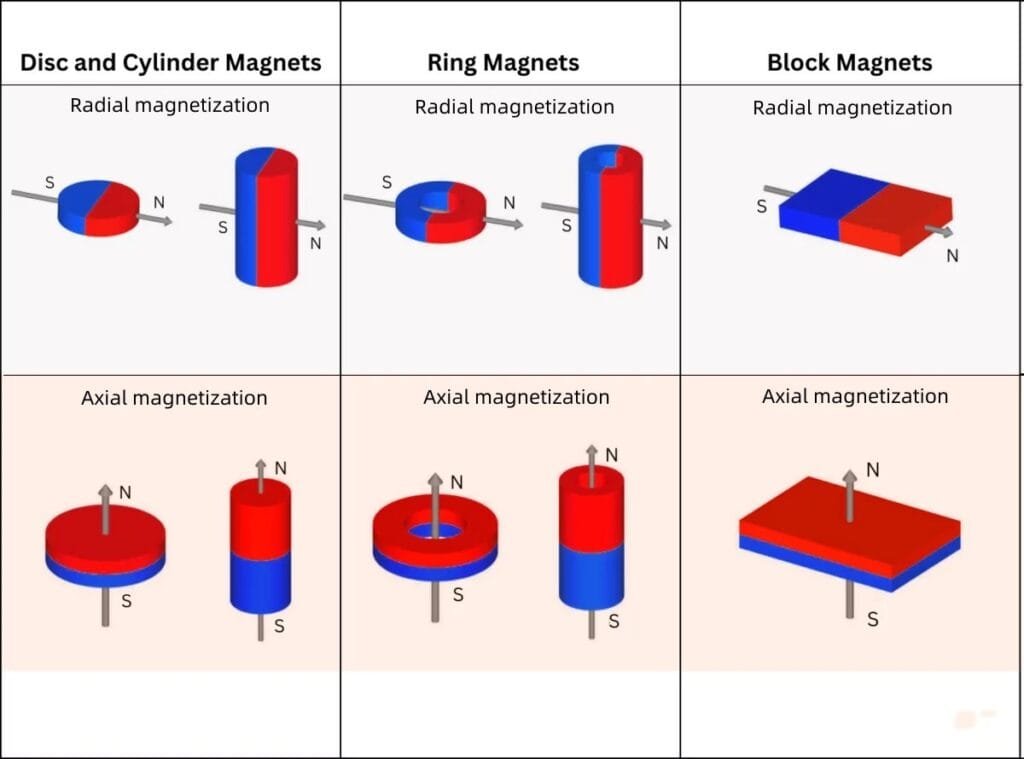

- Common Magnetization Directions
Neodymium magnets can be magnetized in various directions depending on their shape and intended use. The most common magnetization directions include:
（1）Axial Magnetization (Through Thickness)
- The magnetic field runs through the thickness of the magnet, from one flat face to the opposite face.
- Example: A disc or cylinder magnet magnetized through its height.
- （2）Diametrical Magnetization (Through Diameter)
- The magnetic field runs across the diameter of the magnet, from one curved side to the opposite side.
- Example: A ring or cylinder magnet magnetized across its width.

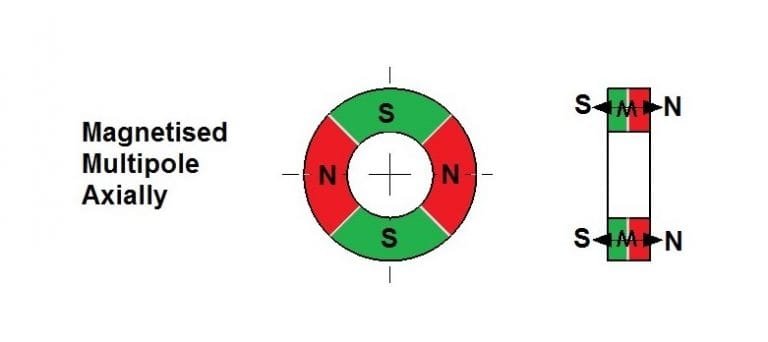

- （3）Multi-Pole Magnetization
- The magnet has multiple north and south poles arranged in a specific pattern (e.g., alternating poles).
- Example: Used in motors, sensors, or specialized applications.
- （4）Custom Magnetization
- Magnets can be magnetized in complex or custom patterns to meet specific application requirements.
- How to Identify Magnetization Direction
- Visual Indicators: Some manufacturers mark the north pole with a dot, line, or color.
- Testing with a Compass: A compass needle will point toward the south pole of the magnet.
- Gauss Meter: A gauss meter can measure the magnetic field strength and direction.
- Importance of Magnetization Direction
- Application-Specific Performance: The magnetization direction must align with the intended use of the magnet. For example:
- Axial magnetization is common in holding or lifting applications.
- Diametrical magnetization is used in motors and sensors.
- Assembly and Alignment: Proper magnetization ensures the magnet functions correctly in its assembly.
- Magnetic Circuit Design: Engineers must consider magnetization direction when designing magnetic systems.
- Customizing Magnetization Direction
We specialize in producing neodymium magnets with custom magnetization directions to meet your unique requirements. Whether you need axial, diametrical, or multi-pole magnetization, our team can deliver magnets tailored to your application.
- Factors Affecting Magnetization Direction
- Shape of the Magnet: The geometry of the magnet influences the possible magnetization directions.
- Application Requirements: The intended use of the magnet determines the optimal magnetization direction.
- Manufacturing Process: Advanced equipment is required to achieve precise and consistent magnetization.
- FAQs About Magnetization Direction
Q: Can I change the magnetization direction after the magnet is made?
A: No, the magnetization direction is set during manufacturing and cannot be changed afterward.
Q: How do I specify the magnetization direction when ordering?
A: Provide detailed drawings or specifications indicating the desired magnetization direction. Our team will ensure your requirements are met.
Q: Does magnetization direction affect the magnet’s strength?
A: The strength of the magnet depends on its grade and size, but the magnetization direction determines how the magnetic field is oriented and utilized.
- Applications Based on Magnetization Direction
- Axial Magnetization: Used in speakers, sensors, and magnetic couplings.
- Diametrical Magnetization: Ideal for motors, generators, and rotary encoders.
- Multi-Pole Magnetization: Common in stepper motors, magnetic separators, and specialized industrial equipment.
