Temperature has a significant impact on the performance of neodymium magnets, particularly because of their Curie temperature and their maximum operating temperature. Here’s a detailed explanation:
- Curie Temperature (Tc)
The Curie temperature is the point at which a magnet loses its magnetic properties entirely and becomes paramagnetic (non-magnetic).
For standard neodymium magnets (NdFeB), the Curie temperature typically ranges between 310°C to 400°C (590°F to 752°F), depending on the specific grade and composition.
Once the magnet reaches or exceeds this temperature, the magnetic domains become disordered, and the magnet cannot be re-magnetized.
- Maximum Operating Temperature
Neodymium magnets have a maximum operating temperature that is much lower than the Curie temperature. This is the highest temperature at which the magnet can operate without significant loss of magnetic strength.
Standard grades of neodymium magnets have a maximum operating temperature of around 80°C to 100°C (176°F to 212°F).
Special high-temperature grades (e.g., N30EH, N33SH, N35UH) can withstand higher temperatures, up to 200°C (392°F) or more, depending on the grade.

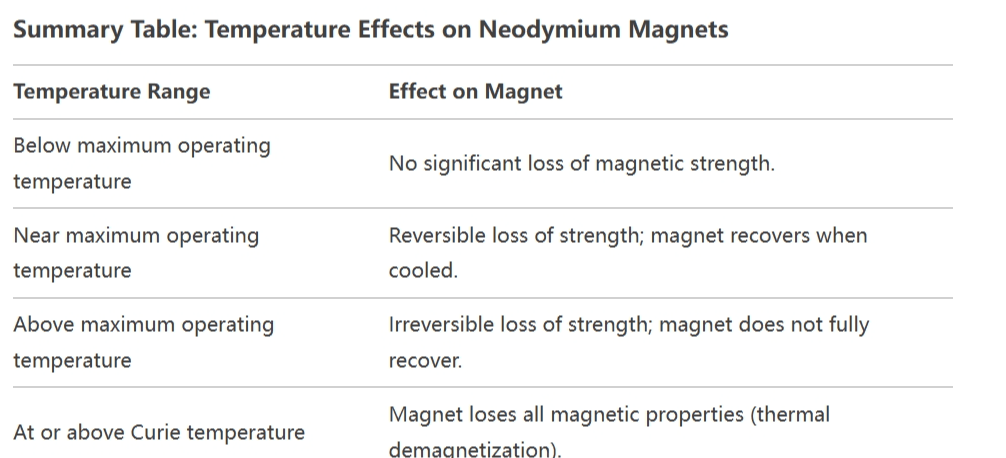

- Reversible and Irreversible Losses
Reversible Losses: When a neodymium magnet is exposed to temperatures near its maximum operating limit, it may temporarily lose some of its magnetic strength. However, this loss is reversible, and the magnet will regain its strength once it cools down.
Irreversible Losses: If the magnet is exposed to temperatures above its maximum operating limit, it may permanently lose some of its magnetic strength. This happens because the alignment of the magnetic domains is disrupted, and the magnet cannot fully recover even after cooling.
- Thermal Demagnetization
If a neodymium magnet is heated beyond its Curie temperature, it will undergo thermal demagnetization. At this point, the magnet loses its magnetic properties entirely and cannot be re-magnetized without specialized equipment.
- Practical Implications
Avoid High Temperatures: Keep neodymium magnets away from heat sources, direct sunlight, or environments where temperatures may exceed their maximum operating limit.
Choose the Right Grade: For high-temperature applications, select a neodymium magnet grade specifically designed for elevated temperatures (e.g., SH, UH, EH grades).
Monitor Temperature: In applications where magnets are exposed to heat (e.g., motors, generators), ensure proper cooling and temperature monitoring to prevent irreversible losses.
